Create a Metric using Custom SQL

This guide provides a step-by-step approach to utilizing custom SQL for creating metrics, which can enhance your data analysis capabilities.

1. Access Custom SQL

   On the Create Metric page, select the “Custom Query” option.

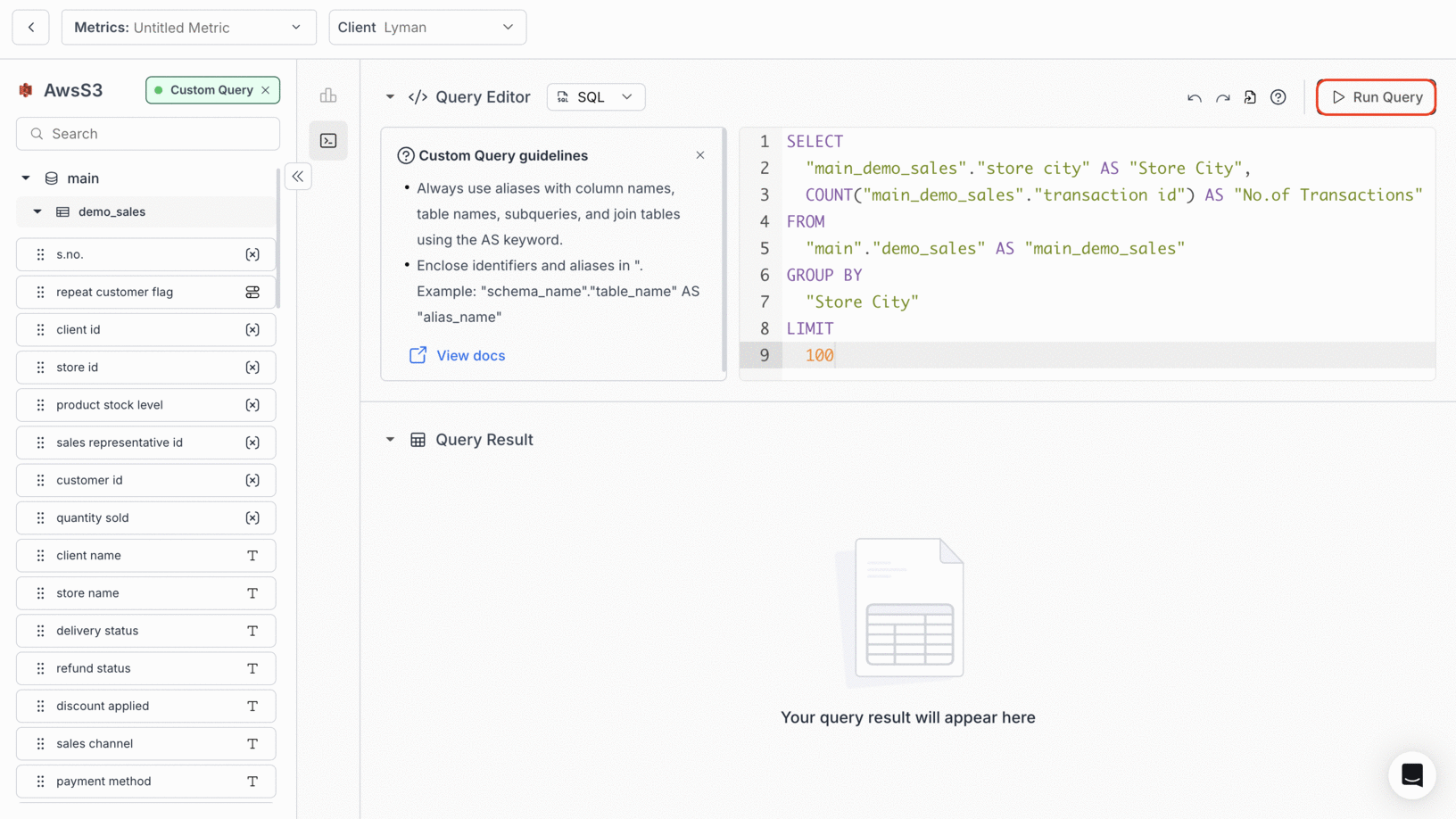

2. Query Execution

   In the Query Editor, enter your custom SQL query.

   Use the “Format Query with AI” option to align with Databrain’s best practices.

   Click “Run Query” to execute.


3. Preview the Results

   Once the query runs, review the Query Result section to view your raw SQL output in a table.

   You can download the results as CSV if needed.


4. Save your Query Result

   Click Use Results > to proceed. You can save it in the following ways:

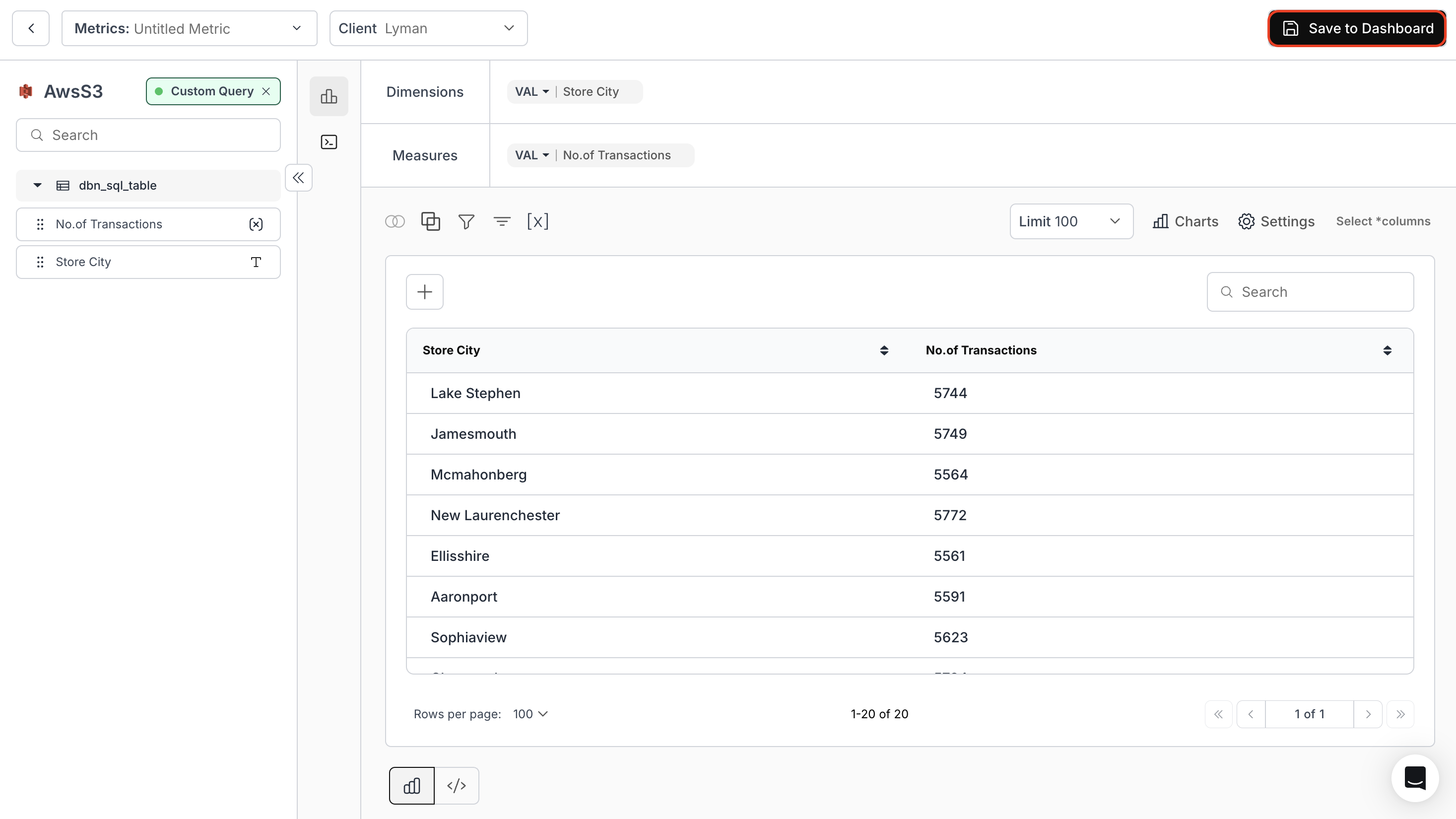

   1. Table Chart

   Click “Use as Table Chart”, configure additional settings, and save it to your dashboard.






   2. Table Chart with Dynamic Table Property

   This automatically adjusts to the latest structure of your SQL query result — ideal for evolving datasets using SELECT *.

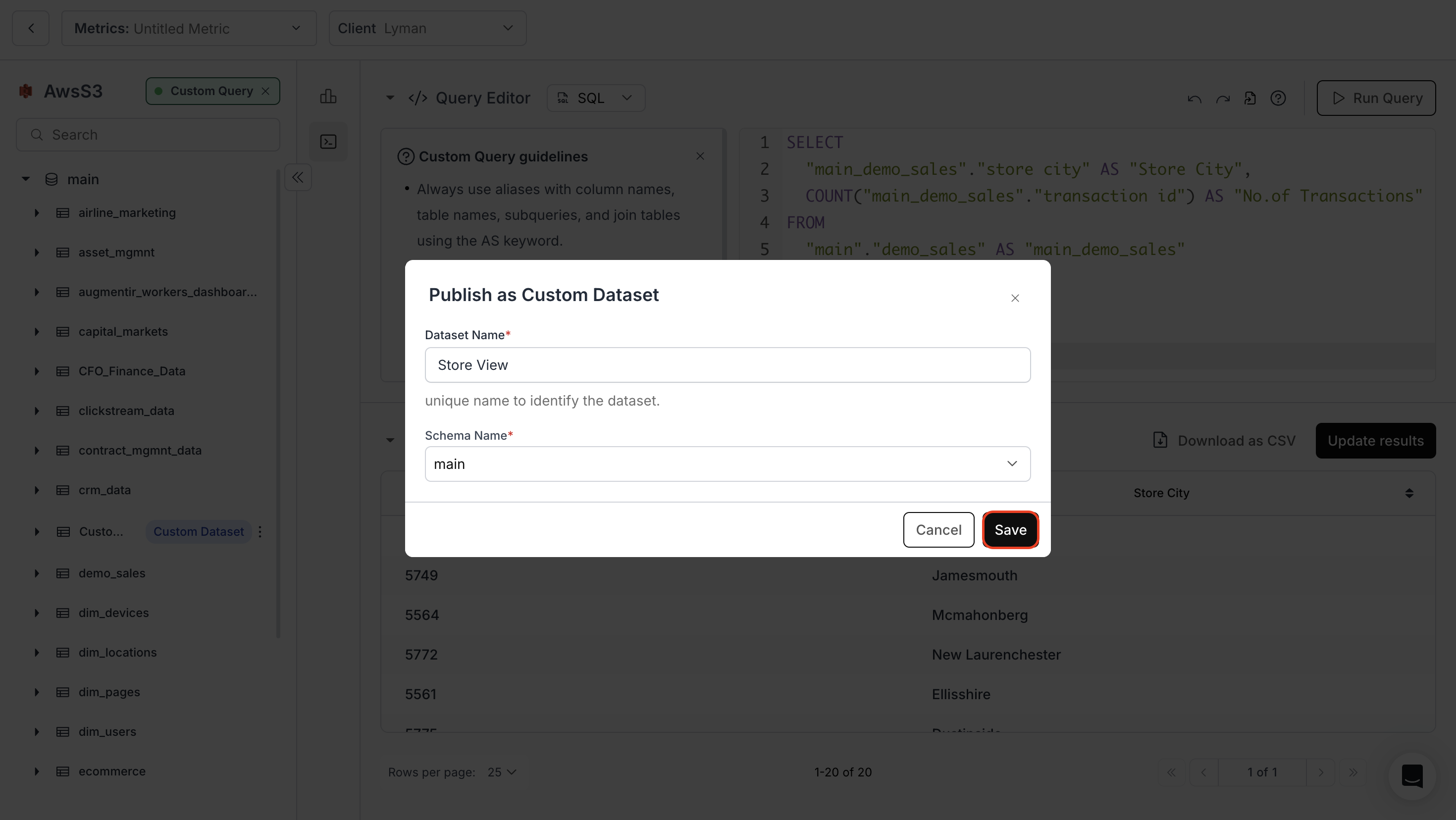

   3. Publish as Custom Dataset

   Provide a dataset name, choose a schema, and click Save.

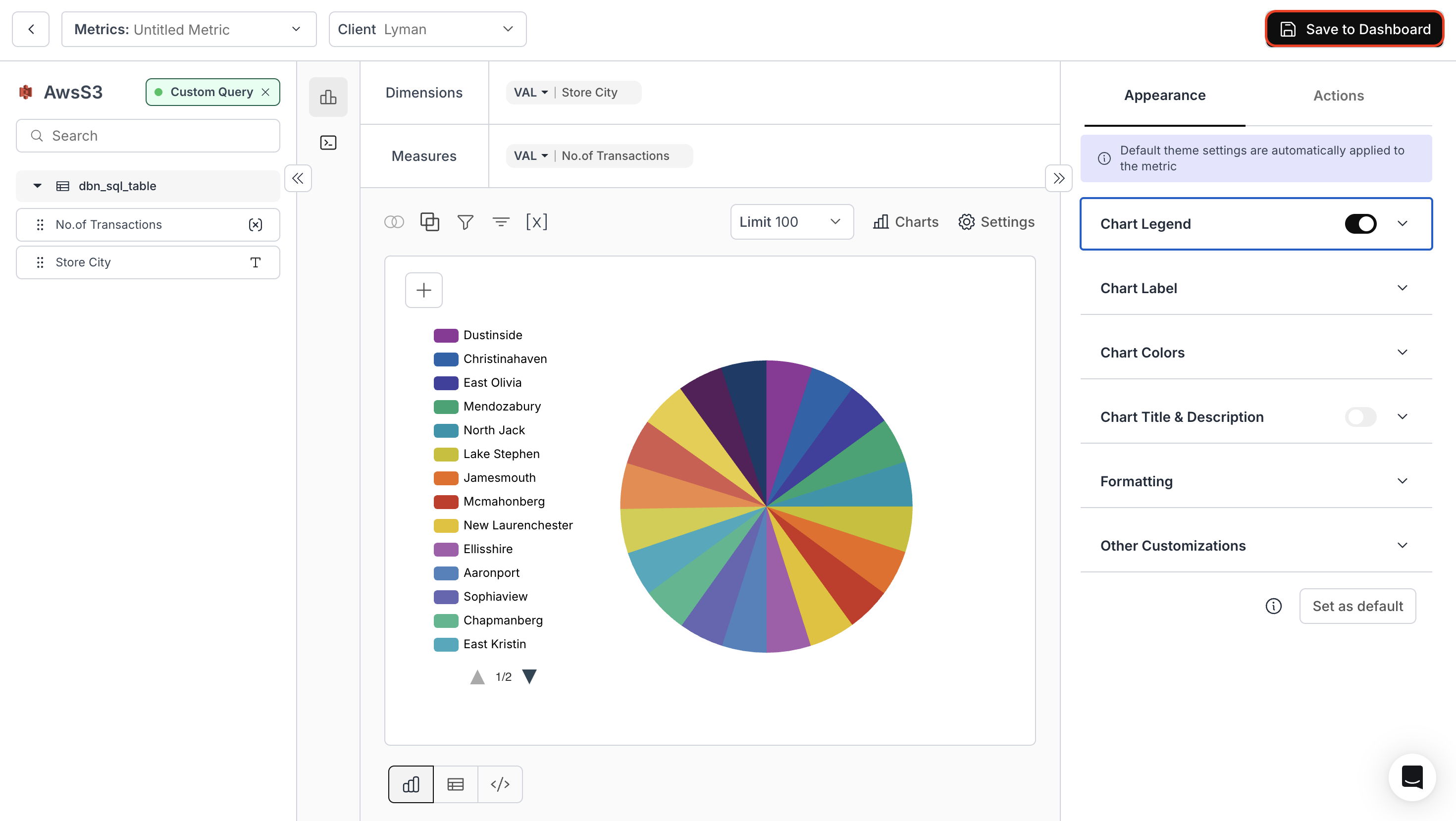

   4. New Chart

   Select your preferred chart type, configure it, and save.


5. Edit Custom Query

   At any point, you can switch between the Chart Builder and the Query Editor.

   Make changes to your SQL and immediately view updated results in both areas.



You’ve successfully created a metric using Custom SQL in Databrain!
Your query-driven metric is now active, giving you full control over data transformation, advanced logic, and custom visualizations directly from your SQL output.
