In Databrain, charts are highly customizable and extensible - you can control the appearance, format the labels, manage click behavior and drilldowns, and much more. This guide walks you through the key customization options to help you create professional and effective data visualizations.

​
Access Chart Appearance

  • Navigate to your metric card, click the “Appearance & Actions” icon, and select the “Appearance” tab.
Interface showing where to access chart appearance settings

​
1. Horizontal Axis Customizations

  • Toggles: Axis Line, Splitlines, Axis Labels, Truncate Label.
  • Set Values: Label Rotation, Custom Rotation, Truncate Label Value, Distance between name and labels.
  • Adjust: Font properties and color.

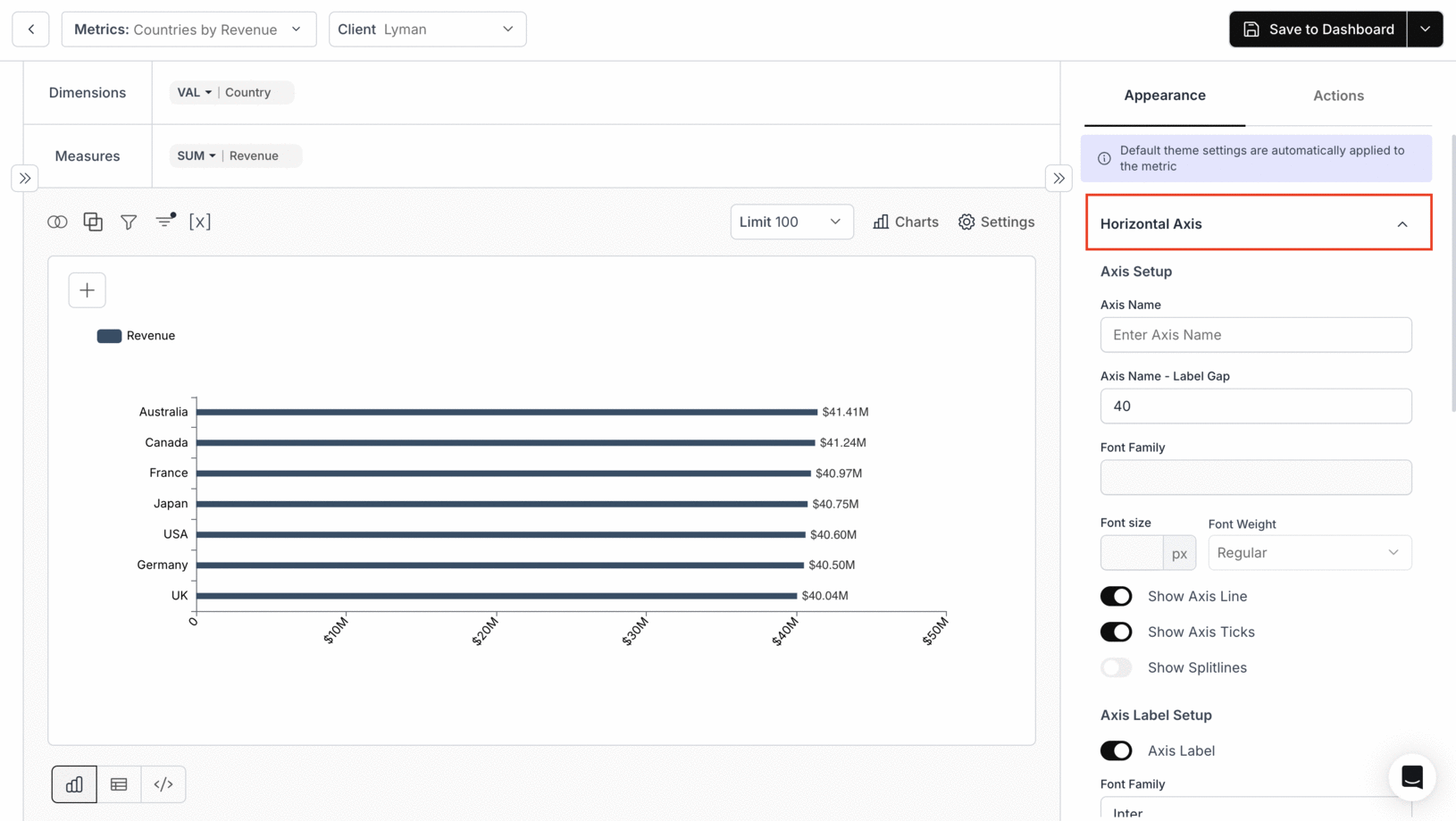

GIF demonstrating customization options for horizontal axis

​
2. Vertical Axis Customizations

  • Toggles: Axis Line, Splitlines, Axis Labels.
  • Set Values: Distance between name and labels.
  • Adjust: Axis Position and font properties.
GIF showing vertical axis customization options

​
3. Chart Legend

Customize: Display, appearance, position, truncation, and shape. Use Case: Let us take a combo multi-scales chart showing Revenue (purple bars) and YoY Growth (blue line).
When you customize the Chart Legend, you can configure:
  • Position: Top-left, center, right; Middle-left, center, right; Bottom-left, center, right
  • Orientation: Horizontal (side by side) or Vertical (stacked)
  • Legend Shape: Square, Diamond, Triangle, Circle, Line
  • Set: the Font, Font size, and Label Color and also truncate the size of label
The legend now appears exactly how and where you want it, making the chart clearer and more professional.

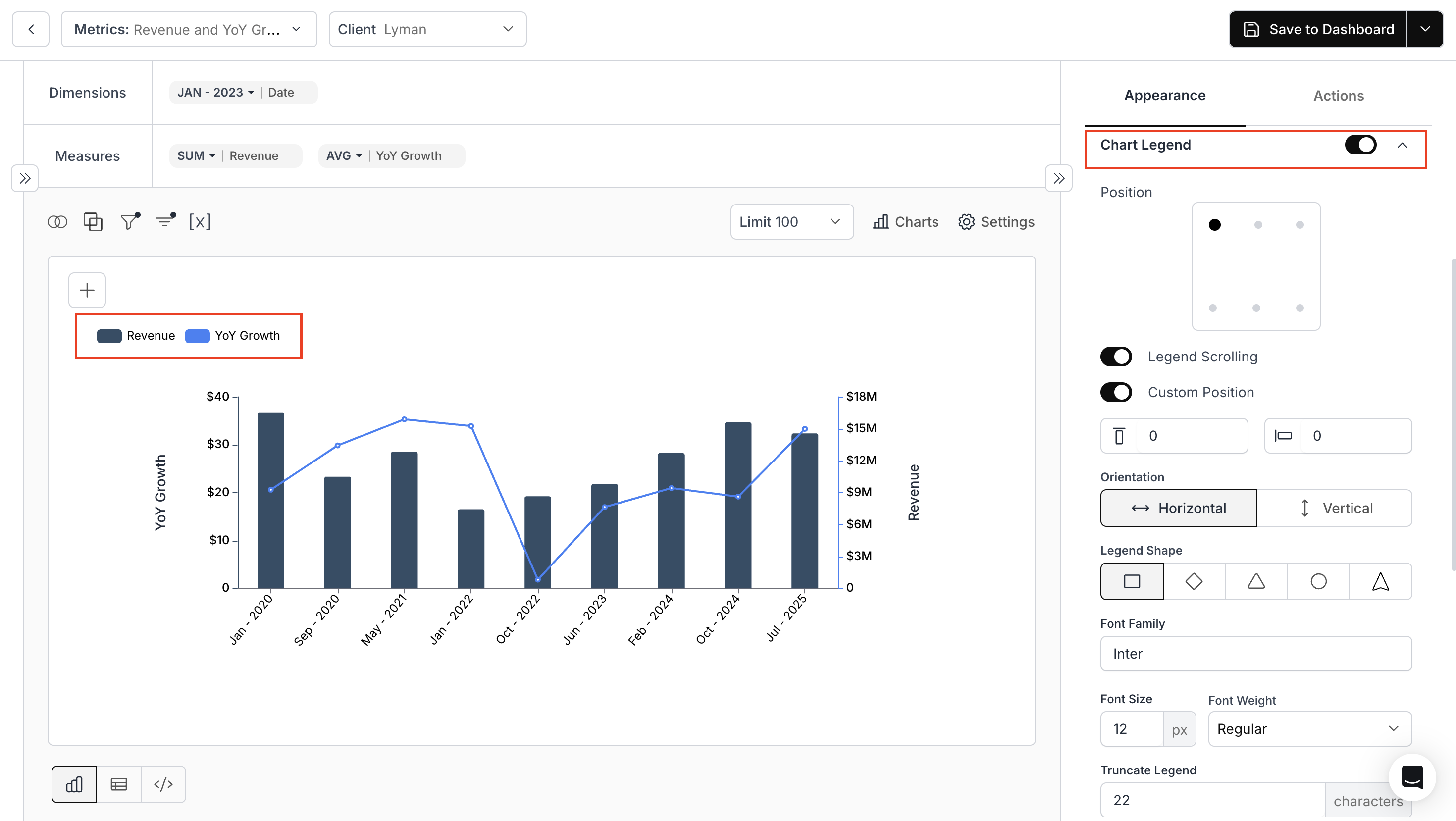

Chart legend customization example

​
4. Chart Margin

Define margins for all four sides of the chart.
Screenshot of chart margin settings

​
5. Chart Label

Position: Determine where value labels appear on the chart. Use Case:
Consider a comparative bar chart displaying Concluded and Starts counts across various locations. With the Chart Label setting, you can choose exactly where the value labels appear—inside the bar, above it, centered, or aligned left or right.

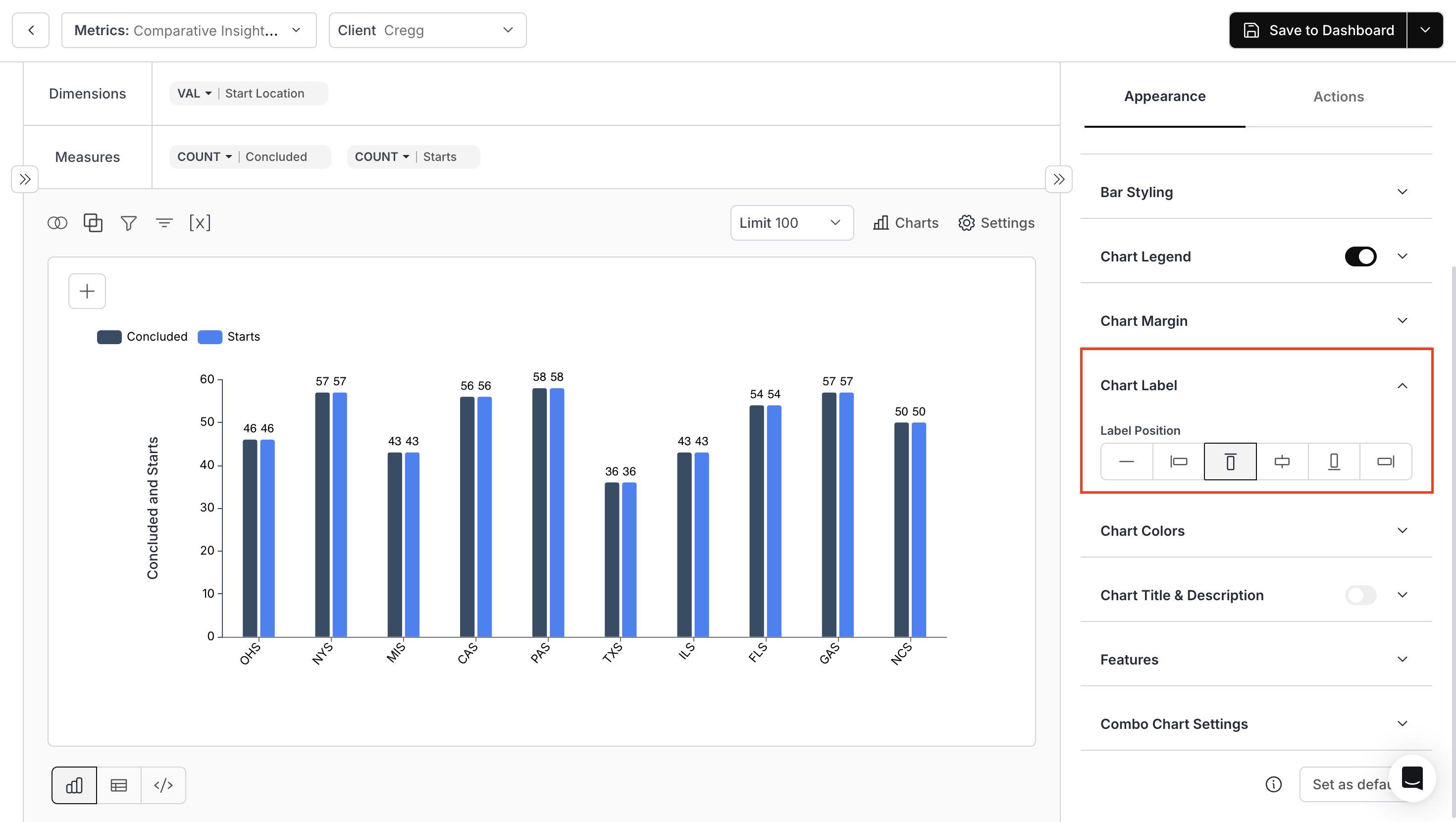

Image showing chart label position customization

​
6. Chart Tooltip

Adjust: Font and color for Header, Label, and Value. Use Case:
When you hover over any bar, the Chart Tooltip provides detailed information. You can further customize tooltip fonts and colors.

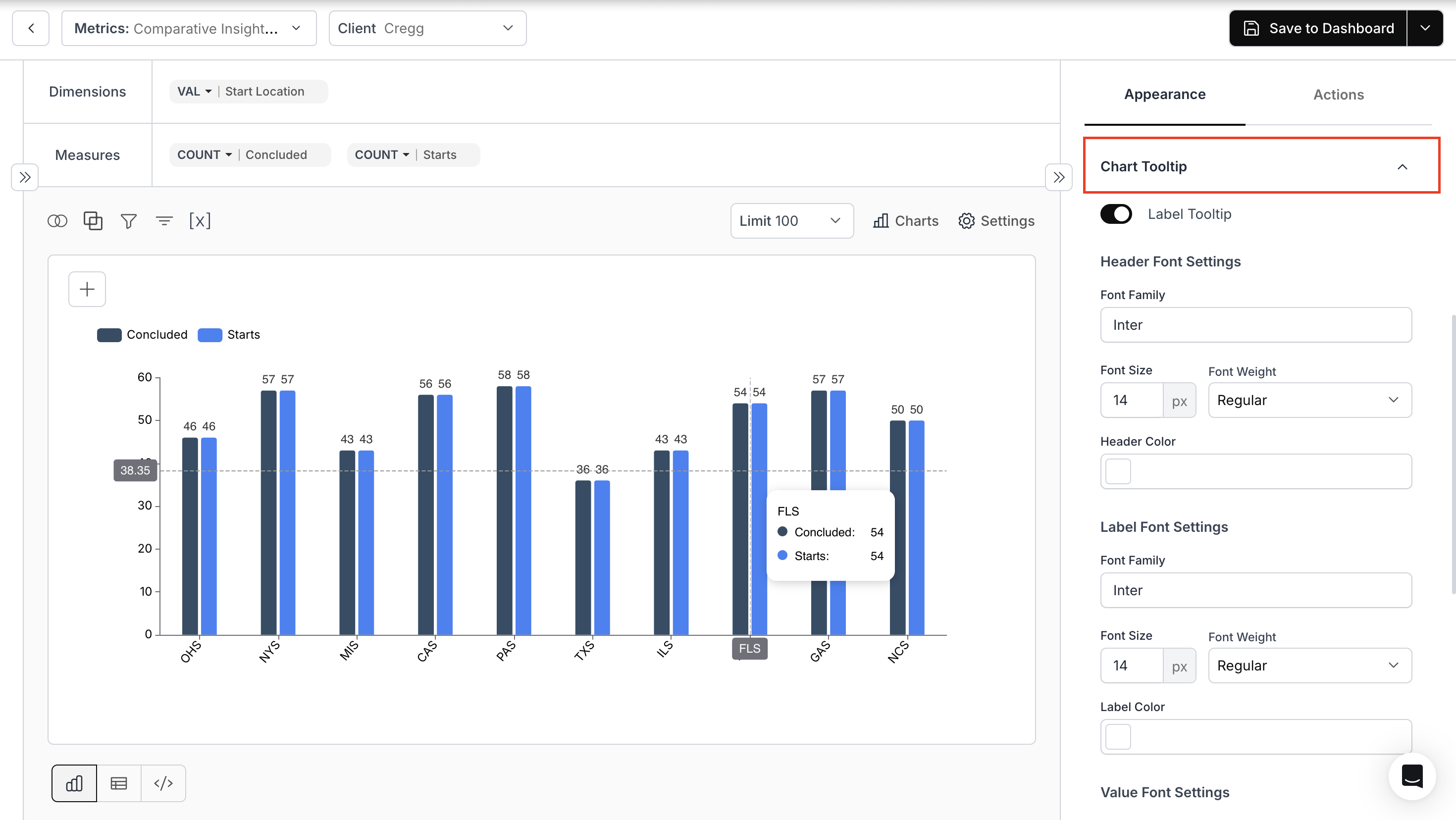

Tooltip customization interface screenshot

​
7. Chart Colors

Modify: Chart colors, gradients, and background gradients.
Chart color customization panel

​
8. Chart Title & Description

Add: Titles and descriptions, and adjust their positions.
Image showing title and description customization on chart

​
9. Formatting

Set: Number formatting, and prefix or suffix.

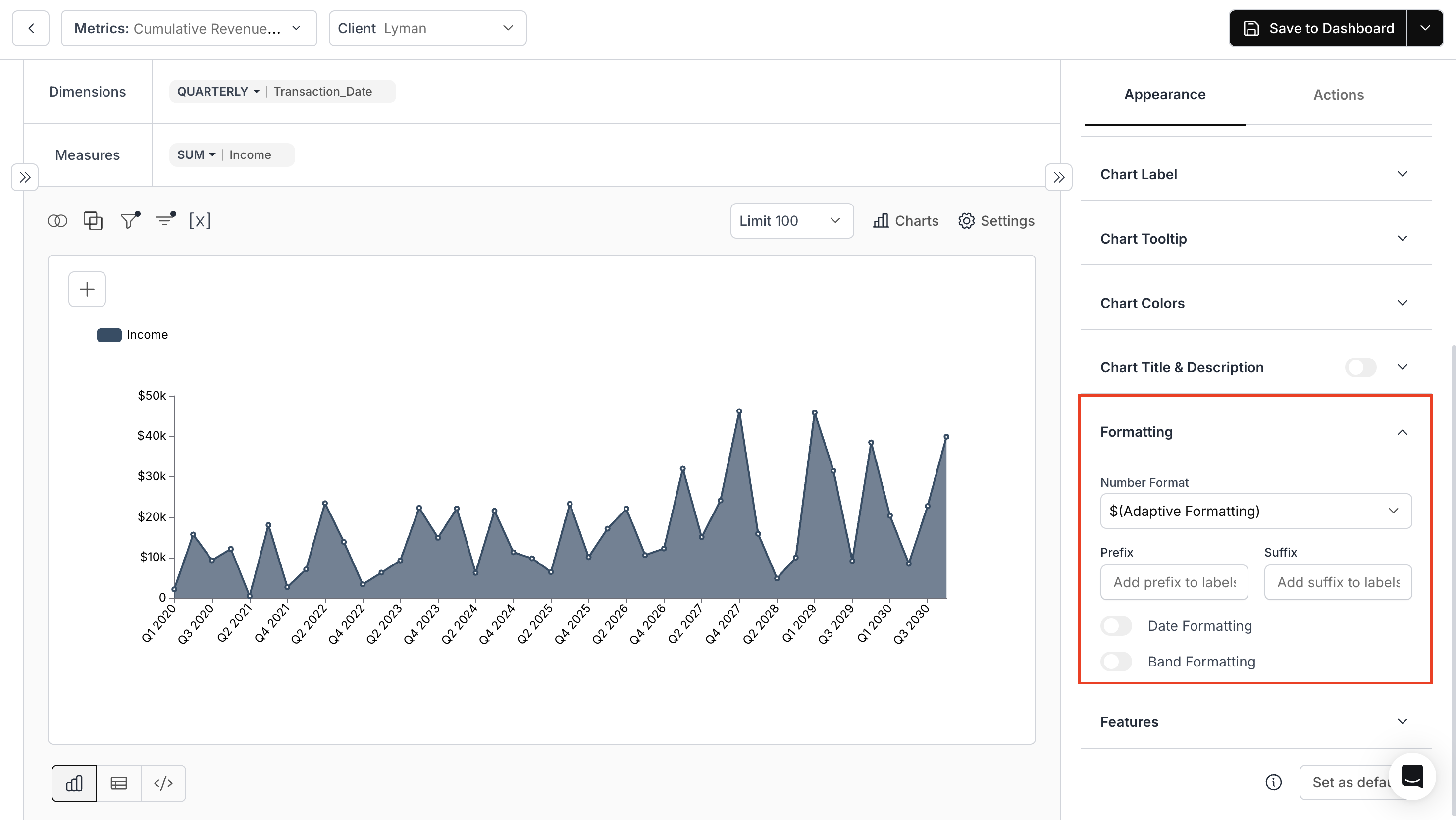

Formatting settings panel for chart values

​
10. Features

Options vary based on chart type.
Example of bar background and chart zoom features

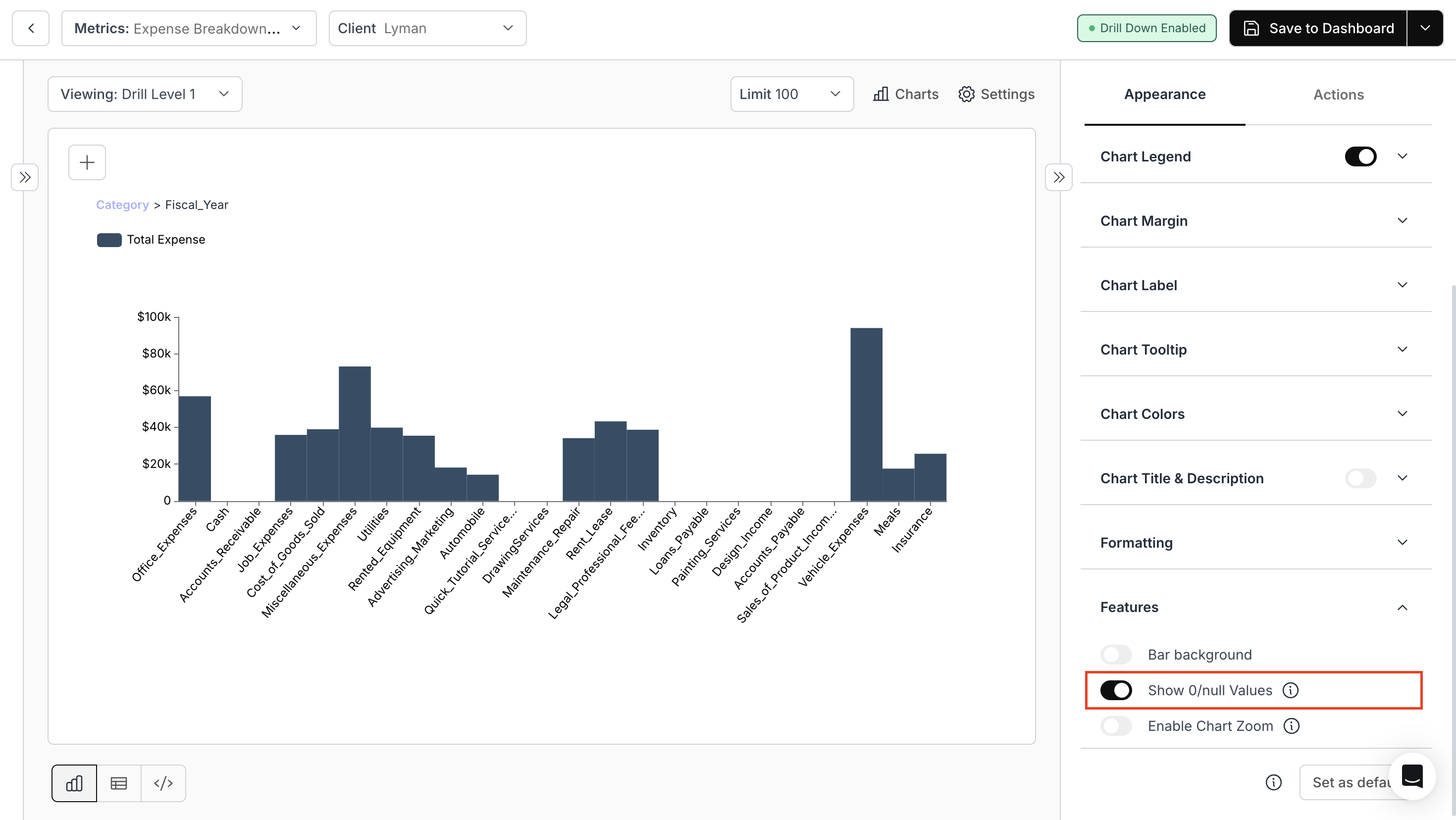

Chart showing effect of hiding null or zero values
GIF demonstrating dynamic behavior toggle on charts
Specific chart types offer unique customizations.
Note: Options may vary based on the “Chart Type” chosen.
For chart-specific appearance options, refer to the link below:

Chart-Specific Appearance Options

Explore appearance settings unique to each chart type such as bar, line, area, and combo charts.
You’ve successfully configured chart appearance.
Your visualizations now follow a consistent, professional style with clearer labels, cleaner legends, and improved readability.
